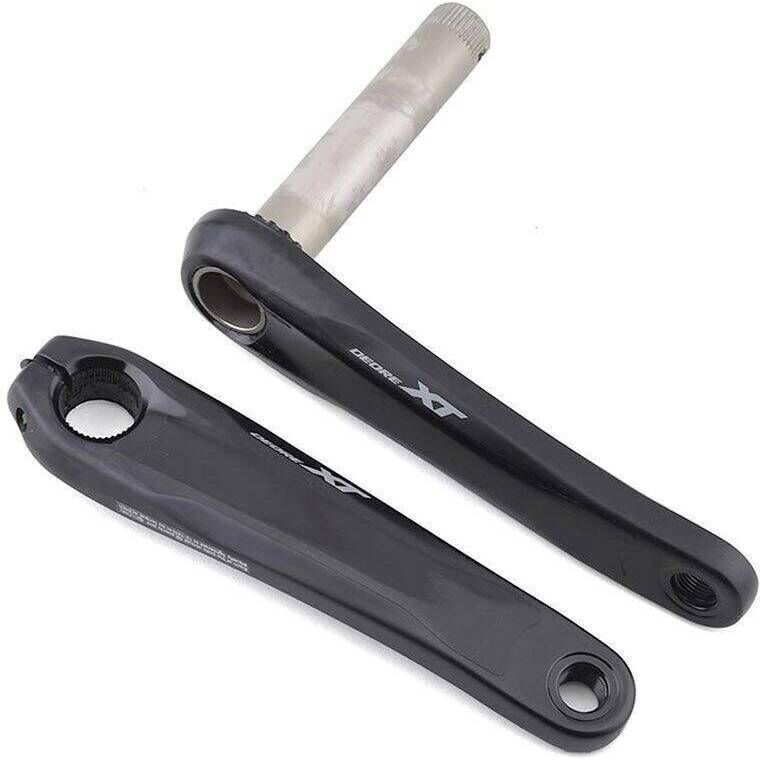

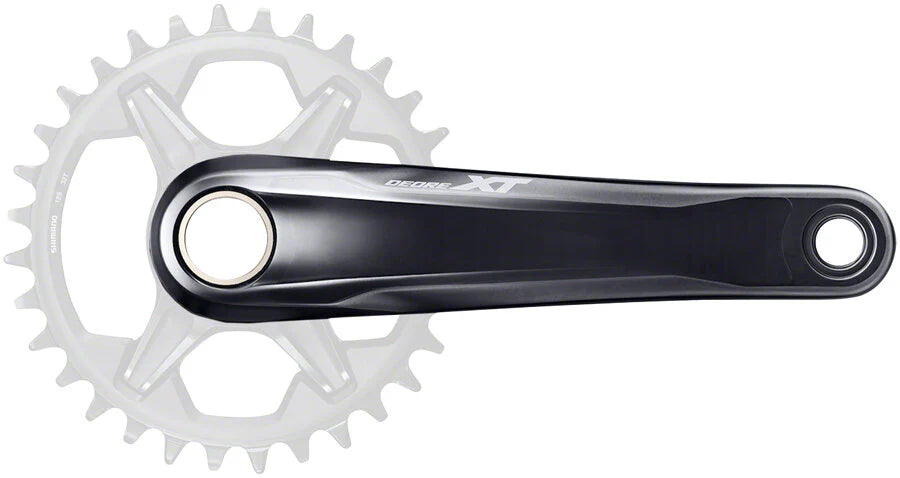

Shimano XT M8120-1 12 Speed Crankset (170)

The SHIMANO DEORE XT FC-M8120-1 crank features an entirely new construction, using direct mount chainrings, special gear tooth profile for improved chain retention, and a 178mm Q-factor. The crankarm construction exemplifies the level of craftsmanship that's put into a Shimano crankset, utilizing a 3D hollow bonded structure to further reduce weight and increase stiffness. Chainrings are easily exchanged with the new direct-mount system and the cranks can be swapped between single and double front chainring setups. The spacing and chainline are optimized for Boost-spaced rear hubs for proper cassette positioning.

• XT M8120 12 speed crankset
• Model: FC-M8120-1
• Hollow forged crank maximizes power transfer while limiting weight
• Superior chain retention
• Rigid and lightweight design for aggressive trail riding
• Spacing: Boost
• Q-factor: 178 mm
• Chainline: 55 mm
• Speed: 12 Speed
• Crankarm Length: 170mm
• Chainring not included
• UPC: 192790780627
