The ZEB was built for the most extreme terrain – steep, double-black-rated trails with freeride elements. And if you like, you can also pedal back up with it.
The all-new LinearXL air spring delivers a coil-spring-like feel—sensitive at the beginning, with plenty of support in the mid-stroke, and adjustable bottom-out resistance (ABO) for reliable control towards the end of the travel. Exclusive to our Ultimate forks, ButterWagonTech ensures a constant supply of lubricating oil to the bushings, reducing friction and guaranteeing silky-smooth performance until the next service interval. The intuitive HSC/LSC adjustment knobs on the Charger 3.2 damper with ButterCups technology allow for quick, easy-to-understand, and communicative setup. The ZEB provides the composure riders need to confidently not only choose their line but also hold it—no matter how extreme the trail.
Features - RockShox ZEB Ultimate Charger 3.2 RC2 29" Linear XL Tapered Boost
-
NEW: The LinearXL air spring provides a consistent and predictable driving experience with adjustable bottom-out protection (ABO) for full control right up to the end of the suspension travel.
-
NEW: ButterWagonTech ensures a constant supply of lubricating oil to the sliding bushings, thus reducing friction and guaranteeing silky-smooth performance until the next service interval.
-
NEW: The Charger 3.2 damping system with new rebound and compression tunes, specifically tailored to the LinearXL air spring, offers virtually silent performance, allowing every rider to concentrate even better on the trail.
-

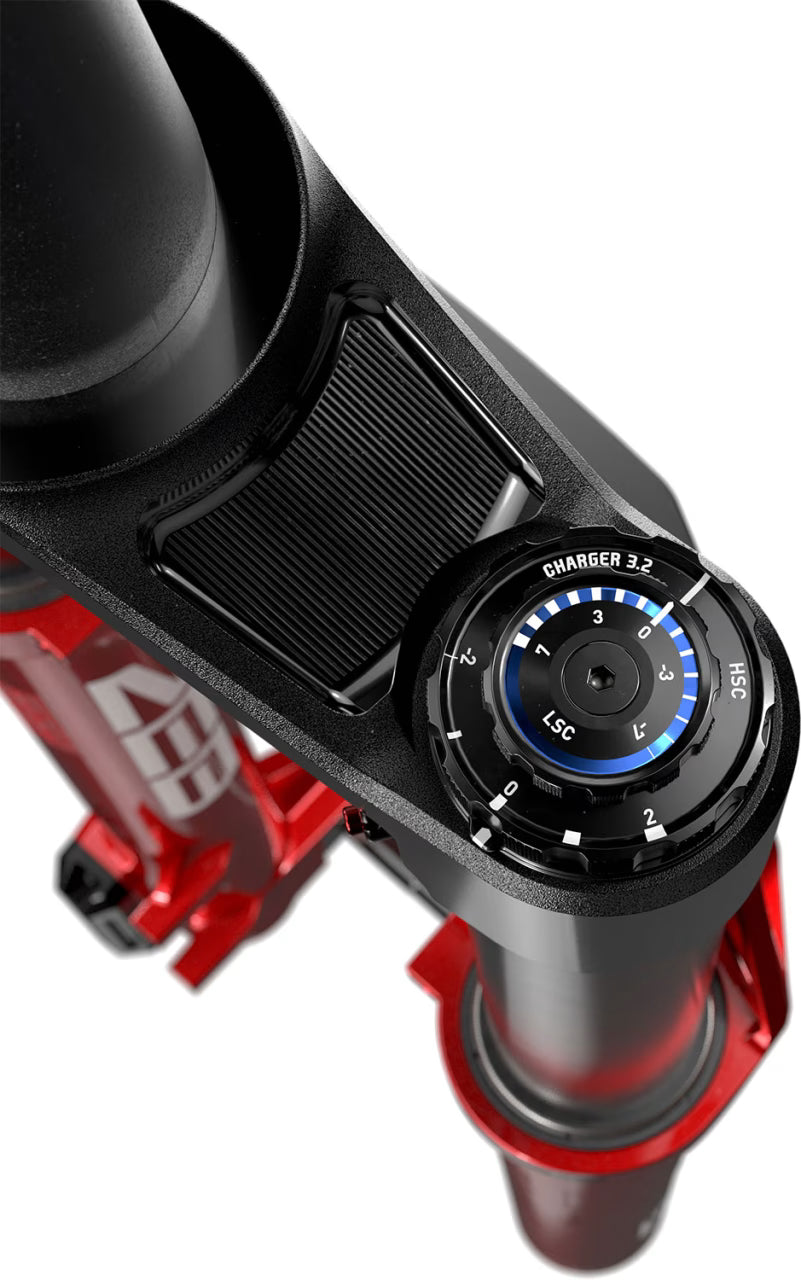

NEW: Adjustment ring with numbered compression stage control makes the setup even more intuitive - start with "0" and simply increase (+) or decrease (-) the damping.
-

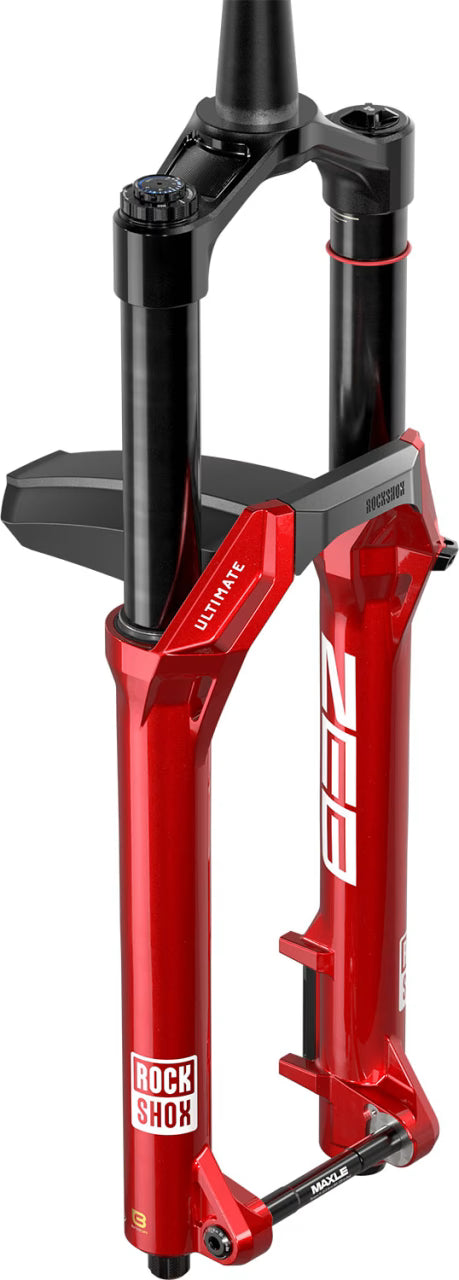

NEW: With integrated mounting for the short mudguard (The integrated ZEB fender is available separately).
-
NEW: Decal design - minimalist but with maximum impact.
- ButterCups technology isolates up to 20% of high-frequency trail bumps, thus reducing hand and arm fatigue.
- The friction-optimized SKF wiper seals ensure long-lasting fork performance and a silky-smooth ride.
- The “Maxima 920 blended 15w” oil reduces overall friction in the suspension fork.
Product Features
-
Intended use: MTB
-
Model name: Ultimate
-
Wheel size: 29"
-
Offset: 44 mm
-
Suspension: Linear XL w/ButterCups
-
Shock absorber type: Charger 3.2 RC2 w/ButterCups
-
Damping settings: Extra begin stroke rebound, low speed compression, high speed compression
-
Bottom out: Externally Adjustable Bottom Out
-
Compression tune: C5
-
Rebound tune: R55
-
Fork steerer: Tapered 1.5" to 1 1/8" (conical)
-
Fork steerer tube length: 262 mm
-
Standpipes: 38 mm
-
Standpipe Finish: Butter Wagon Tech
-
Disc brake mount: Post Mount (PM7 - Direct Mount 180 mm)
-
Maximum recommended brake disc size: 220 mm
-
Dropouts: 15x110 mm Boost Maxle Stealth
-
Max. tire diameter: 770 mm
-
Maximum tire width: 81 mm
-
Installation height: 586 mm (170 mm)
-
Fork crown/head: 59 mm
-
Maximum recommended system weight: 170 kg
-
Suitable for e-bikes: Yes
-
ASTMF2043-EN17406 Class: 5
-
Fender compatibility: Bolt on - Short
Suspension Travel
Material
-
Fork steerer: Aluminum
-
Fork crown: Forged 7050 aluminum
-
Standpipes: Tapered Wall Aluminum, Fast Black
-
Immersion tubes: Magnesium
Color
